Standard configuration
HFC R404a environmental friendly refrigerant;
Multi-function operating panel and uP controller;
Hot gas defrosting system;
DC12V operating voltage;
Safety devices
- Emergency switch protection;
- Thermal protection guard;
- System HP/LP cutout switches;
- Wire harness ESD insulation methods which improve system protection from electromagnetic interference.
Operation and control component
-
Microprocessor control system; -
Automatic / manual defrost; -
Digital display -
Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes.
Product key features
01

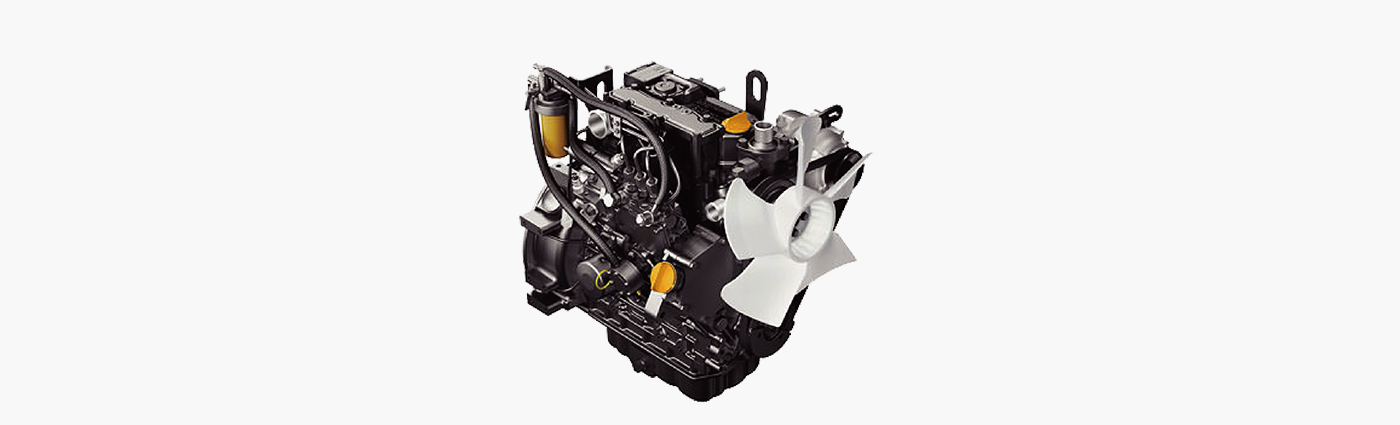

Driven by Japan built, highly reliable Shibaura Perkins 3 cylinders engine, low running noise and fuel consumption;
02
Stand-by motor uses aluminum shell, excellent heat exchange, high efficiency, stable performance;
03
Connection tubing between evaporator and condenser is very short, reduced leakage possibility;
04
Axial fans, large air volume, long life;
05
Internally grooved copper tubing, high efficiency heat exchange for fast cooling;
06
Complete control system, pre-trip test, accurate temperature control, engine start or stop according to the set temperature;
07
Automatically switched between engine and standby work, reducing fuel consumption and lower noise levels;
08
Optional data recorder, GPS and remote control functions.
Specifications
|
Model |
Refrigerant |
Weight(Kg) |
Dimension |
Cooling Capacity(W) |
Evaporator Airflow |
Application- (m3) |
Evaporator Opening Size |
|||
| Engine |
Standby |
|||||||||
|
0℃/+30℃ |
-20℃/+30℃ |
0℃/+30℃ |
-20℃/+30℃ |
|||||||
|
KSD-1000 |
R404a |
482 |
1850*800*640 |
8250 |
5185 |
6820 |
4485 |
2580 |
35~45 |
1245*350 |
Note:
Appilication-internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
