Specifications

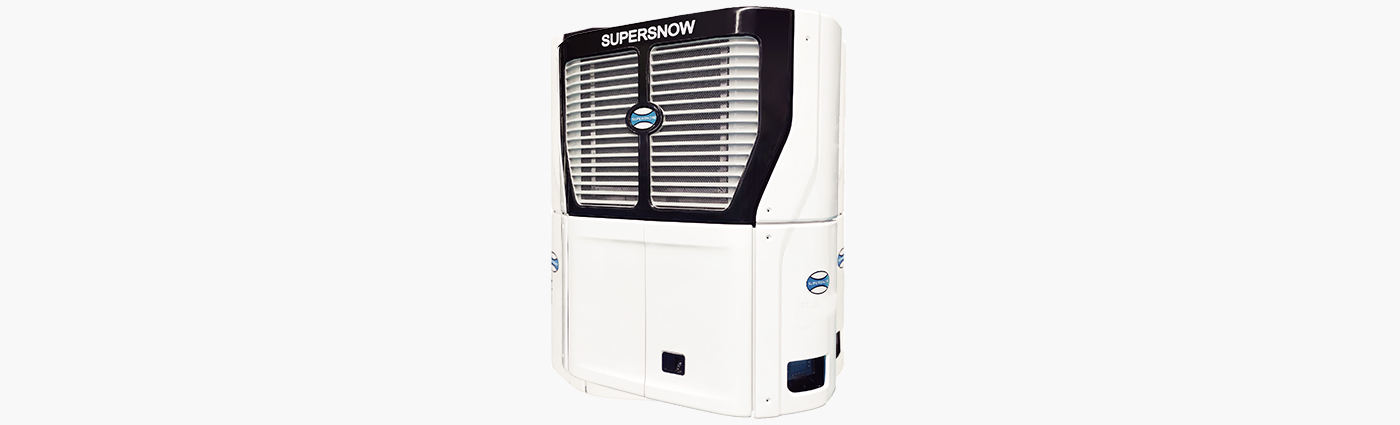

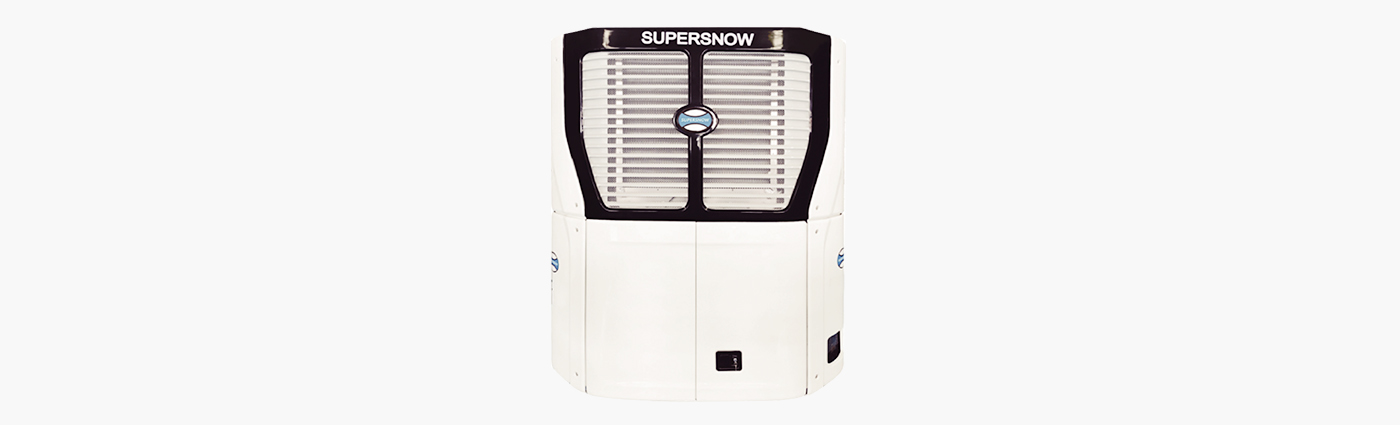

KST-2000V self powered trailer refrigeration unit with electric standby
Specification
Cooling capacity
Original Shibaura-Perkins diesel engine, especially modified for rugged and economical transport refrigeration application.
High performance and fuel efficient 2.2 litre displacement 4 cylinder diesel engine (2212cc or 135in3)
Power 25.8kW @ 1900 Engine RPM
14.6L lubricating oil
Intelligent control system
Engine low oil pressure switch protection
Engine high coolant temperature switch protection
Engine rotational speed RPM protection
Exhaust gas temperature protection
System High Pressure protection
System Low Pressure protection
System 12VDC voltage protection
System 12VDC electric current monitoring and protection
Fuel heating devices
Door switch
System HP/LP real-time monitoring
Compressor
High quality German 4 cylinder Bock.
Displacement 650cc.
Single unloader valves for capacity control via uP controller. (Dual unloader is optional)
Specification
|
Operating Voltage |
DC12V |
|
Condenser Section Dimensions |
1945×2270×592mm |
|
Evaporator Housing Dimensions |
1685×1150×204mm |
|
Required Front Wall Opening |
1696×1168mm |
|
Weight |
|
|
Unit (engine drive only, no standby) |
880kg |
|
Battery |
25kg |
|
Aluminum Fuel Tank(180L) |
12.8kg |
Cooling capacity
|
Return Air to Evaporator/ Ambient |
Engine Mode @ 1800 RPM |
|
0℃ / 30℃ |
19,500W |
|
-20℃/ 30℃ |
10,900W |
Original Shibaura-Perkins diesel engine, especially modified for rugged and economical transport refrigeration application.
High performance and fuel efficient 2.2 litre displacement 4 cylinder diesel engine (2212cc or 135in3)
Power 25.8kW @ 1900 Engine RPM
14.6L lubricating oil
Intelligent control system
Engine low oil pressure switch protection
Engine high coolant temperature switch protection
Engine rotational speed RPM protection
Exhaust gas temperature protection
System High Pressure protection
System Low Pressure protection
System 12VDC voltage protection
System 12VDC electric current monitoring and protection
Fuel heating devices
Door switch
System HP/LP real-time monitoring
Compressor
High quality German 4 cylinder Bock.
Displacement 650cc.
Single unloader valves for capacity control via uP controller. (Dual unloader is optional)
