Standard configuration
HFC R404a environmental friendly refrigerant
Multi-function operating panel and uP controller
Hot gas defrosting system
DC12V/24V operating voltage
Safety devices
- Emergency switch protection
- Thermal protection guard
- System HP/LP cutout switches
- Wire harness ESD insulation methods for reducing electromagnetic interference
Operation and control component
-
Microprocessor control system -
Automatic/Manual defrost -
Digital display -
Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes
Product key features
01
Streamlined appearance, beautiful and elegant
02

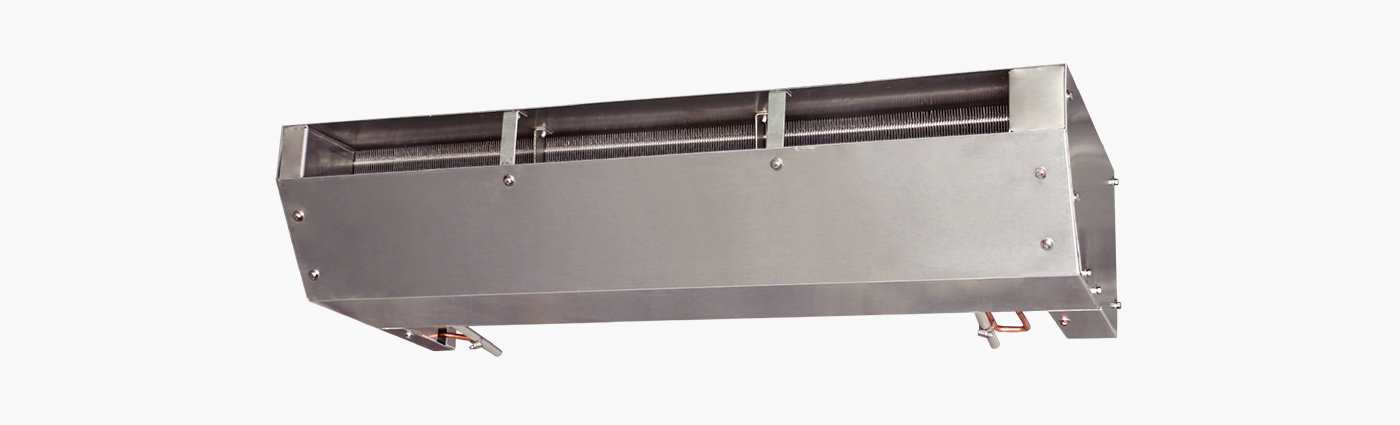

Internal ultra-thin evaporator, greatly increase the cargos loading capacity
03
Large cooling capacity ensure the goods safety. Even in case of high temperature or frequent door opening, the unit still can ensure the cargos safety
04
Large airflow volume, maintains the goods in fresh condition
05
Wide range of temperature control(-30℃~+30℃)
06
Microprocessor control, easy operation and safe
07
Fast installation, convenient maintenance, saving cost
08
Heating and electric stand-by options
Specifications
| Model | Refrigerant | Cooling Capacity(W) | Evaporator Airflow (m3/h) |
Application (m3) |
Evaporator | Condenser | |||
| 0℃/+30℃ | -20℃/+30℃ | L*W*H(mm) | Weight(Kg) | L*W*H(mm) | Weight(Kg) | ||||
| KX-500K | R404a | 5400 | 2650 | 2310 | 20~30 | 1225*540*275 | 33 | 1270*590*415 | 42 |
Note:
Application-internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
