Standard configuration
HFC R404a environmental friendly refrigerant;
Multi-function operating panel and uP controller;

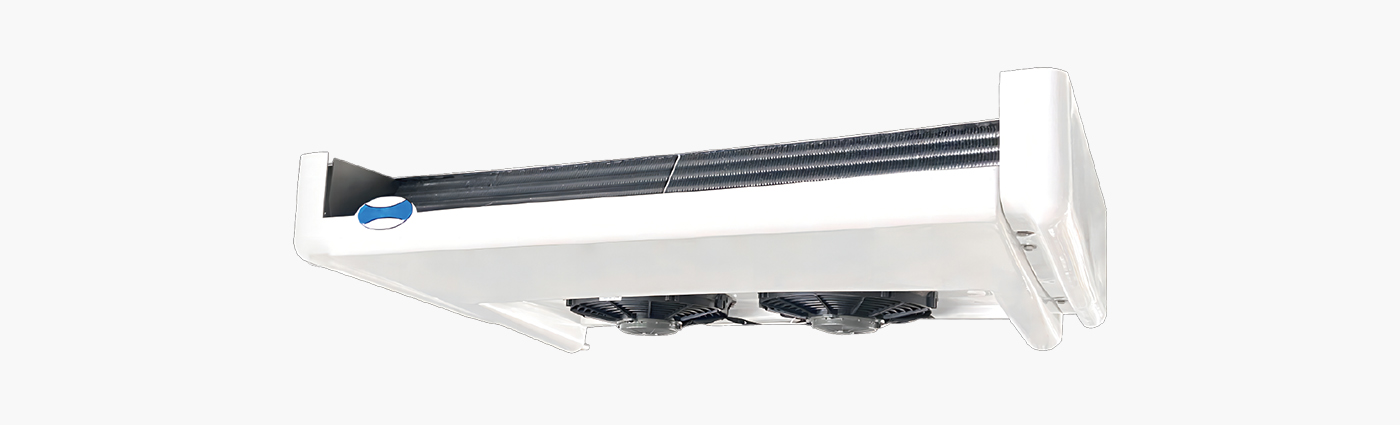

Ultra-thin evaporator;
Hot gas defrosting system;
DC12V/24V operating voltage;
HFC134a or 452a refrigerant options may be available per prior agreement.
Safety devices
- Emergency switch protection;
- Thermal protection guard;
- System HP/LP cutout switches;
- System HP/LP cutout switches;
- Wire harness ESD insulation methods which improve system protection from electromagnetic interference.
Operation and control component
-
Microprocessor control system; -
Automatic / manual defrost; -
Digital display -
Fahrenheit or Celsius display for set point temperature and return air temperature, parameters setting alarm codes.
Product key features
01
Best choice for small reefer van;
02
Evaporator copper tubes with aluminum fins, fast cooling, large airflow;
03
Accurate temperature control, and perfect data monitoring on Fahrenheit or Celsius display;
04
Heating and electric stand-by options.
Specifications
|
Model |
Refrigerant |
Cooling Capacity(W) |
Evaporator Airflow |
Application (m3) |
Evaporator |
Condenser |
|||||
| Engine |
Standby |
Dimension |
Weight(Kg) |
Dimension |
Weight(Kg) |
||||||
|
0℃/+30℃ |
-18℃/+30℃ |
0℃/+30℃ |
-18℃/+30℃ |
||||||||
|
KX-350R |
R404a |
3815 |
2260 |
3050 |
1760 |
1800 |
15~25 |
1080*655*210 |
17 |
890*865*235 |
21 |
Note:
Application-internal volume is for reference only, it depends on insulation material (K factor should be equal or lower than 0.32Watts/m²℃), ambient temperature, precooling, load and type of goods etc.
